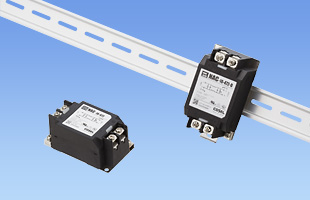

NAC　Single-phase EMI Filters

NAC 系列

數量：
加入詢價
產品介紹 產品規格表 / 圖檔下載
型錄下載

4-30A
Push down type terminal block

40-60A
・Single phase 277VAC / 300VDC
   This product is available 277VAC equipment in factory switchboards and building equipment
・Withstand voltage 4,000 VAC (Line to ground capacitor code -222 , -472)

NAC(1)  -  04(2)  -  472(3)  -  □(4)
(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
  Refer to Product Line-up.
  * When the line to ground capacitor code is different, the attenuation characteristic is different.
(4) Options
  D:DIN rail installation type
    * The dimensions change when the option is set. Refer to External view.

型號 漏電流 コンデンサ容量（公称値） 額定電壓 額定電流
NAC-04-681 75.5μA / 150μA max 680pF 1φ 277VAC / 300VDC 4A
NAC-04-102 0.13mA / 0.25mA max 1000pF 1φ 277VAC / 300VDC 4A
NAC-04-222 0.25mA / 0.5mA max 2200pF 1φ 277VAC / 300VDC 4A
NAC-04-332 0.38mA / 0.75mA max 3300pF 1φ 277VAC / 300VDC 4A
NAC-04-472 0.5mA / 1.0mA max 4700pF 1φ 277VAC / 300VDC 4A
NAC-06-681 75.5μA / 150μA max 680pF 1φ 277VAC / 300VDC 6A
NAC-06-102 0.13mA / 0.25mA max 1000pF 1φ 277VAC / 300VDC 6A
NAC-06-222 0.25mA / 0.5mA max 2200pF 1φ 277VAC / 300VDC 6A
NAC-06-332 0.38mA / 0.75mA max 3300pF 1φ 277VAC / 300VDC 6A
NAC-06-472 0.5mA / 1.0mA max 4700pF 1φ 277VAC / 300VDC 6A
NAC-10-681 75.5μA / 150μA max 680pF 1φ 277VAC / 300VDC 10A
NAC-10-102 0.13mA / 0.25mA max 1000pF 1φ 277VAC / 300VDC 10A
NAC-10-222 0.25mA / 0.5mA max 2200pF 1φ 277VAC / 300VDC 10A
NAC-10-332 0.38mA / 0.75mA max 3300pF 1φ 277VAC / 300VDC 10A
NAC-10-472 0.5mA / 1.0mA max 4700pF 1φ 277VAC / 300VDC 10A
NAC-16-681 75.5μA / 150μA max 680pF 1φ 277VAC / 300VDC 16A
NAC-16-102 0.13mA / 0.25mA max 1000pF 1φ 277VAC / 300VDC 16A
NAC-16-222 0.25mA / 0.5mA max 2200pF 1φ 277VAC / 300VDC 16A
NAC-16-332 0.38mA / 0.75mA max 3300pF 1φ 277VAC / 300VDC 16A
NAC-16-472 0.5mA / 1.0mA max 4700pF 1φ 277VAC / 300VDC 16A
NAC-20-681 75.5μA / 150μA max 680pF 1φ 277VAC / 300VDC 20A
NAC-20-102 0.13mA / 0.25mA max 1000pF 1φ 277VAC / 300VDC 20A
NAC-20-222 0.25mA / 0.5mA max 2200pF 1φ 277VAC / 300VDC 20A
NAC-20-332 0.38mA / 0.75mA max 3300pF 1φ 277VAC / 300VDC 20A
NAC-20-472 0.5mA / 1.0mA max 4700pF 1φ 277VAC / 300VDC 20A
NAC-30-681 75.5μA / 150μA max 680pF 1φ 277VAC / 300VDC 30A
NAC-30-102 0.13mA / 0.25mA max 1000pF 1φ 277VAC / 300VDC 30A
NAC-30-222 0.25mA / 0.5mA max 2200pF 1φ 277VAC / 300VDC 30A
NAC-30-332 0.38mA / 0.75mA max 3300pF 1φ 277VAC / 300VDC 30A
NAC-30-472 0.5mA / 1.0mA max 4700pF 1φ 277VAC / 300VDC 30A
NAC-40-222 0.25mA / 0.5mA max 2,200pF 1φ 277VAC / 300VDC 40A
NAC-40-472 0.5mA / 1.0mA max 4,700pF 1φ 277VAC / 300VDC 40A
NAC-40-223 1.25mA / 2.5mA max 0.022µF 1φ 277VAC / 300VDC 40A
NAC-40-683 1.75mA / 3.5mA max 0.068µF 1φ 277VAC / 300VDC 40A
NAC-40-224 6.0mA / 12.0mA max 0.22µF 1φ 277VAC / 300VDC 40A
NAC-40-155 27.5mA / 55.0mA max 1.5µF 1φ 277VAC / 300VDC 40A
NAC-50-222 0.25mA / 0.5mA max 2,200pF 1φ 277VAC / 300VDC 50A
NAC-50-472 0.5mA / 1.0mA max 4,700pF 1φ 277VAC / 300VDC 50A
NAC-50-223 1.25mA / 2.5mA max 0.022µF 1φ 277VAC / 300VDC 50A
NAC-50-683 1.75mA / 3.5mA max 0.068µF 1φ 277VAC / 300VDC 50A
NAC-50-224 6.0mA / 12.0mA max 0.22µF 1φ 277VAC / 300VDC 50A
NAC-50-155 27.5mA / 55.0mA max 1.5µF 1φ 277VAC / 300VDC 50A
NAC-60-222 0.25mA / 0.5mA max 2,200pF 1φ 277VAC / 300VDC 60A
NAC-60-472 0.5mA / 1.0mA max 4,700pF 1φ 277VAC / 300VDC 60A
NAC-60-223 1.25mA / 2.5mA max 0.022µF 1φ 277VAC / 300VDC 60A
NAC-60-683 1.75mA / 3.5mA max 0.068µF 1φ 277VAC / 300VDC 60A
NAC-60-224 6.0mA / 12.0mA max 0.22µF 1φ 277VAC / 300VDC 60A
NAC-60-155 27.5mA / 55.0mA max 1.5µF 1φ 277VAC / 300VDC 60A


如需產品圖檔，請洽廣億科技服務人員，謝謝！
