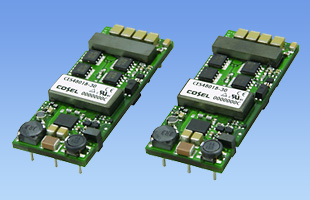

• Compact DC-DC Converter, "BRICK SIZE" which has been standard size for Telecommunication Market
• High efficiency
• High density
• High reliability: not built-in aluminum and tantalum electrolytic capacitor
• Built-in overcurrent, overvoltage and thermal protection circuits
• Built-in remote ON/OFF
CE(1) S(2) 48(3) 018(4) - 30(5) - □(6)
(1) Series name
(2) Single output
(3) Input voltage
24: DC18 - 36V
48: DC36 - 76V
(4) Output voltage
015: 1.5V
018: 1.8V
025: 2.5V
033: 3.3V
050: 5V
060: 6V
120: 12V
150: 15V
(5) Output current
(6) Optional
S: SMD
R: with Remote ON/OFF
Positive logic control
V: Ouput voltage setting ±1%
N: Auto restart from thermal protection
|
型號 |
輸入電壓 |
輸出瓦數 |
輸出電壓／電流 |
|
CES24033-25 |
DC18-36V/DC36-76V |
82.5W |
3.3V 25A |
|
CES24050-16 |
DC18-36V/DC36-76V |
80.0W |
5V 16A |
|
CES24120-6 |
DC18-36V/DC36-76V |
72.0W |
12V 6.0A |
|
CES24150-4 |
DC18-36V/DC36-76V |
60.0W |
15V 4.0A |
|
CES48015-30 |
DC36-76V |
45.0W |
1.5V 30.0A |
|
CES48018-30 |
DC36-76V |
54.0W |
1.8V 30.0A |
|
CES48025-25 |
DC36-76V |
62.5W |
2.5V 25.0A |
|
CES48033-25 |
DC36-76V |
82.5W |
3.3V 25.0A |
|
CES48050-16 |
DC36-76V |
80.0W |
5V 16.0A |
|
CES48120-6 |
DC36-76V |
72.0W |
12V 6.0A |
|
CES48150-4 |
DC36-76V |
60.0W |
15V 4.0A |
|
CES48033-30 |
DC36-76V |
99.0W |
3.3V 30.0A |
|
CES48050-20 |
DC36-76V |
100.0W |
5V 20.0A |
|
CES48060-17 |
DC36-76V |
102.0W |
6V 17.0A |
|
CES48033-30P |
DC36-76V |
99.0W |
3.3V 30.0A |
|
CES48050-20P |
DC36-76V |
100.0W |
5V 20.0A |
|
CES48120-7P |
DC36-76V |
84.0W |
12V 7.0A |
