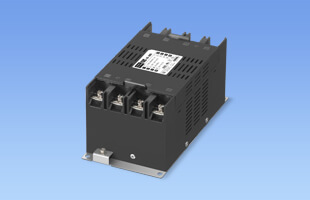

YAC Three-phase EMI Filter
YAC 系列
Three-Phase Four-Wire System 500VAC 25-80A
High-Attenuation from 150kHz to 1MHz
1-Stage Filter
Three-Phase Four-Wire System EMI/EMC Filter ideal for High-power office equipment and Energy storage systems
Suitable for 150kHz to 1MHz conduction noise reduction
Product lineup that can flexibly respond to system and capacity changes in a compact/same body size
YAC(1) - 25(2) - 685(3)
(1) Model Name
(2) Rated Current
(3) Line to Ground Capacitor Code
Refer to Product Line-up.
| 型號 | Leakage Current* | Line to ground capacitor (nominal value) |
|---|---|---|
| YAC-25-685 | 10.7mA typ *1 55mA max *2 |
6.8μF |
| YAC-36-685 | 10.7mA typ *1 55mA max *2 |
6.8μF |
| YAC-64-685 | 10.7mA typ *1 55mA max *2 |
6.8μF |
| YAC-80-685 | 10.7mA typ *1 55mA max *2 |
6.8μF |
* Input 500V 60Hz (Y-Connection)
*1 At normal operation with applying 10V in between N(N') and FG (According to IEC60939).
*2 At the worst case under normal operation.
