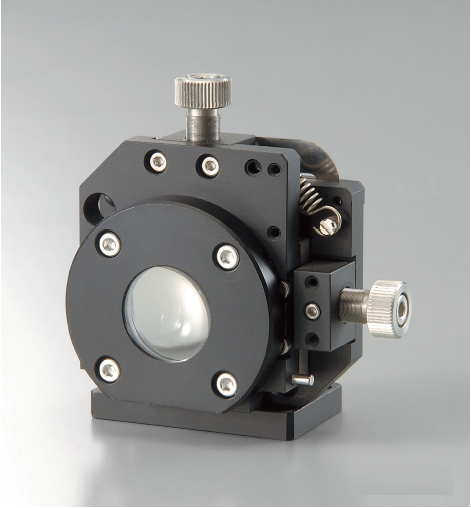

OPS：可調芯鏡架：單透鏡：精密交叉滾子型：F513A
※不含透鏡
| 型號 | 適用透鏡徑 [φmm] |
透鏡厚度Max[mm] | φA [mm] |
RoHS |
| F513A-10 | 10 | 6 | 7 | ● |
| F513A-12.7 | 12.7 | 6 | 9.5 | ● |
| F513A-15 | 15 | 6 | 12 | ● |
| F513A-20 | 20 | 6 | 17 | ● |
| F513A-25.4 | 25.4 | 7 | 22.5 | ● |
| 型號 | 適用透鏡徑 [φmm] |
透鏡厚度Max[mm] | φA [mm] |
RoHS | 圖檔 |
| F513A-10 | 10 | 6 | 7 | ● | - |
| F513A-12.7 | 12.7 | 6 | 9.5 | ● | - |
| F513A-15 | 15 | 6 | 12 | ● | - |
| F513A-20 | 20 | 6 | 17 | ● | - |
| F513A-25.4 | 25.4 | 7 | 22.5 | ● | - |
如需產品圖檔，請洽廣億科技服務人員，謝謝！
